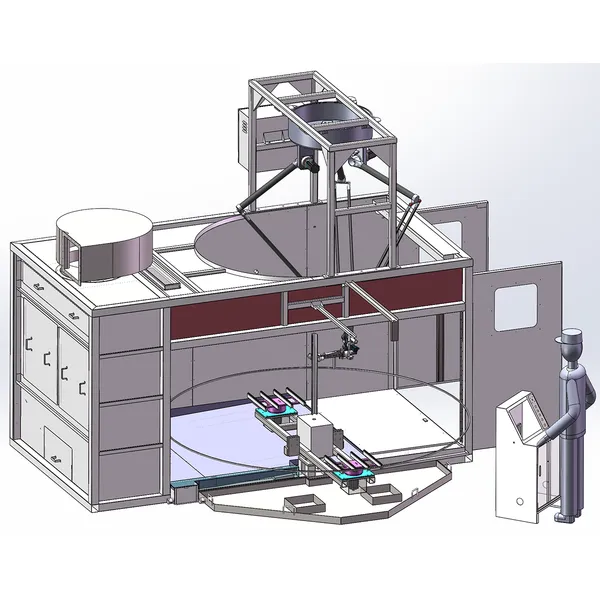

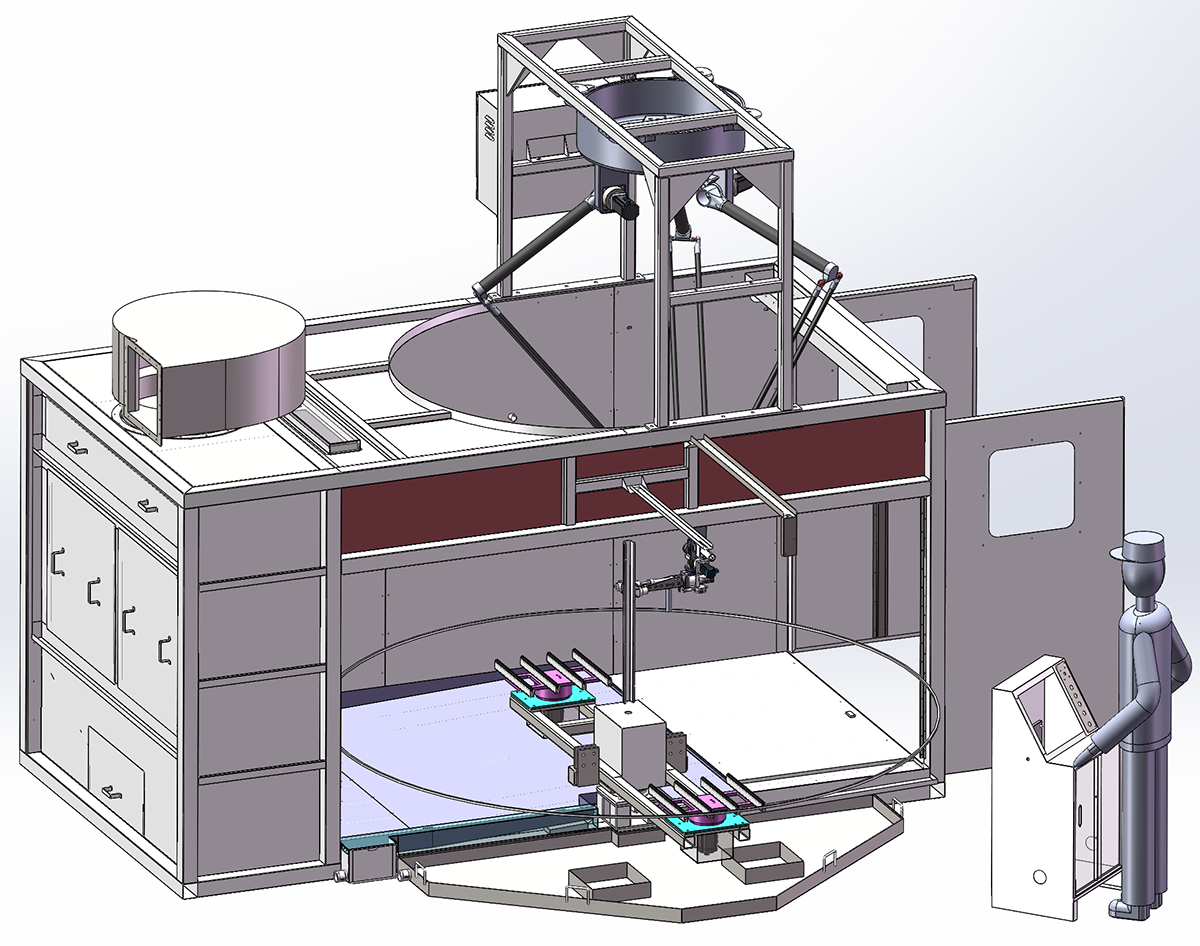

T2000 Robotic Glazing Workstation

T2000 Spraying Workstation is a flagship solution independently developed by Xinke Intelligence, spanning from its mechanical structure to the core controller and software algorithms. It is widely utilized for FRP (Fiberglass Reinforced Plastic) spraying on bathtubs and ceramic glazing applications.

As the largest hybrid parallel-serial structure robot in China, it represents a pioneering domestic innovation. The system is built on a Real-time Linux platform and utilizes the EtherCAT industrial bus for high-speed communication. Through proprietary high-performance motion control algorithms, advanced dynamics, and bus-based torque control, it achieves Suspension Drag-and-Teach (D&T) functionality. Due to its unique structural design, it is recognized as the most "gentle" and effortless drag-and-teach robot in the domestic market. Operators can record trajectories via ultra-light suspension control, which the system then replicates with extreme precision. Both the architecture and the control system are products of complete independent innovation.

After three years of rigorous field testing and refinement, this product has secured over 70% market share in the ceramic sanitary ware industry, earning widespread acclaim for its reliability and performance.


Description

Fields of Application

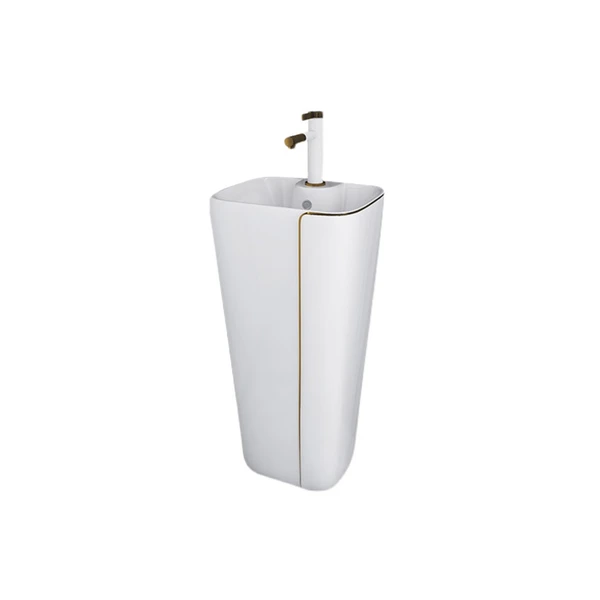

This workstation is ideally suited for the automated glazing and spraying of a full range of sanitary ware products, including:


Product Configuration & Components

We utilize premium components and self-developed hardware to ensure maximum durability and precision:


Quick Inquiry Filling Table

Industrial Equipment Specification Form

01

Product Specifications

Required for turntable spraying
02

Spraying Method

03

Hanging Line / Turntable

04

Robot Configuration

05

Electrical Cabinet

06

Spray Gun

07

Paint/Powder Supply System

08

Reference Materials

09

Water Curtain / Dust Removal Cabinet

10

Product Spraying Rhythm

11

Calibration

12

Hardware & Controls

13

Additional Requirements & Specifications
